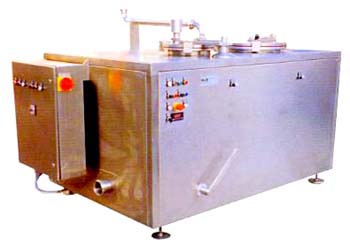

PASTE - HORIZONTAL - BATCH MIXER |
|
|
Type HPA - VA |
|
|
|
|
|
Production machine |
|
|
for Mixing - Emelsifying - Gasing - De-Aerating - Heating - Cooling - Thickening |
|
|
Examples for application of the |
|
|
Multiple current fluid - cooking mixer |
|
|
Preparation of highly viscose to barely flowable masses; |
|
|
Fruit processing - preservatives Cottage cheese masses (aerated) Honey Fruit ice cream - base masses (Processing frozen, ripened fruits to fruit pastes) Truffle masses Confectionery fillings Emulsions Flavor mixtures with or without fruit Dessert sauces Toffee masses Pouring mass production Peanut butter Mixture base for fillings and creams Sugar solutions Cream production Doughs |
Hard candy masses Fruit pastes Chocolate-masses-fillings (aerated) Production of special jellies based on starch, gelatine, agar, pectin, gum arabic Baby food (Base mixture for further processing - spray drying) Gingerbreads Soft caramels Marmelades - jams Spices Hard caramels/fillings Dissolving pectin without evaporation Syrup compounds Pralinιs Nougat |
|
PASTEN - HORIZONTAL -BATCH
MIXER |
|
|
Machine description/Technical details |
|
 |

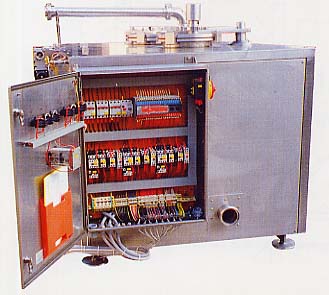

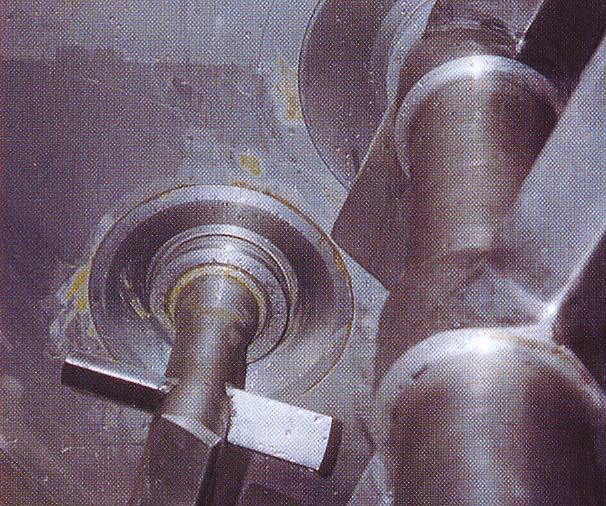

100% stainless steel construction - Investment of lasting value Horizontal mixer - closed cylinder - polished grain 300 Pressure-tight up to 1 bar (special constructions: up to 4 bar) Vacuum-tight up to -1 bar Fully sterilizable. Filling opening 0 500 mm with swing lid plus pressure-tight and vacuum-tight special pneumatic sealing Inspection opening 0 300 mm Smooth, hygienic, and easy-to-clean externalmachine contour Mixing equipment in mixing drum: Ribbon mixer, mixing paddle inserts, high-frequency stator/rotor-mixer head Double blade-turbine Mixing shaft mountings (situated on the outside) Shaft sealings: Slide ring sealings (water lubricated) Driving power: three-phase A.C. motors - fixed revs/min Discharging connection: Ball valve with threaded pipe according to DIN 11851 Standard construction includes switchbox and computerized control system for fully automatic production cycles. Mixing drum with double casing (depressurized or pressurized max. 2 bar) for - heating: steam or hot water - cooling: water or cooling liquid Electronic temperature indicator of material to be mixed and automatic temperature regulation Electro pneumatic valve control mechanism for heating and cooling Machine supports adjustable in height |
 |
|
 |
|
