P r o d u k t i o n M a c h i n e
For Mixing–Emulsifying–Cooking–Cooling-Aerating– De-Aerating- Thickening
Examples for Application
- Fruit processing - preservatives
- Cottage cheese masses (aerated)
- Honey
- Fruit ice cream - base masses (Processing frozen, ripened fruits to fruit pastes)
- Truffle masses
- Confectionary fillings
- Emulsions
- Aroma mixtures with or without fruit
- Dessert sauces
- Toffee masses
- Pouring mass production
- Peanut butter
- Mixture base for fillings and creams
- Sugar solutions
- Cream production
- Doughs
- Hard candy masses
- Fruit pastes
- Chocolate-masses-fillings (aerated)
- Production of special jellies based on starch, gelatine, agar, pectin, gum arabic
- Baby food (Base mixture for further processing - spray drying)
- Gingerbreads
- Soft caramels
- Marmelades - jams
- Spices
- Hard caramels/ fillings
- Dissolving pectin without evaporation
- Syrup compositions
- Crocant
- Nougat
The Horizontal Mixer is suitable for the batch wise processing of block fat, wafer rework, sugar, cocoa and other dry substances and liquids.
The cutting and mixing as well as aerating (with 4 bar overpressure for wafer cream) takes place in one working cycle.
MIXING-CUTTING-AERATING in one working cycle
- 100% stainless steel construction
- Investment of lasting value
- Horizontal mixer - closed cylinder - polished grain 300 Pressure-tight up to 1 bar (special constructions: up to 4 bar) Vacuum-tight up to -1 bar
- Fully sterilizable
- Filling opening 500 mm with swing lid plus pressure-tight and vacuum-tight special pneumatic sealing
- Inspection opening 300 mm
- Smooth, hygienic, and easy to clean external machine contour
- Mixing equipment in mixing drum: Ribbon mixer, mixing paddle inserts, high-frequency stator/rotor-mixer head, Double blade-turbine
- Mixing shaft mountings (situated on the outside)
- Shaft sealings: Slide ring sealings (water lubricated)
- Driving power: three-phase A.C. motors - fixed Rpm
- Discharging connection: Ball valve with threaded pipe according to DIN 11851
- Standard construction includes switchbox and computerized control system for fully automatic production cycles.
- Mixing drum with double casing
- (depressurized or pressurized max. 2 bar) for
- heating: steam or hot water
- cooling: water or cooling liquid
- Electronic temperature indicator of material to be mixed and automatic temperature regulation
- Electropneumatic valve control mechanism for heating and cooling
- Machine supports adjustable in height

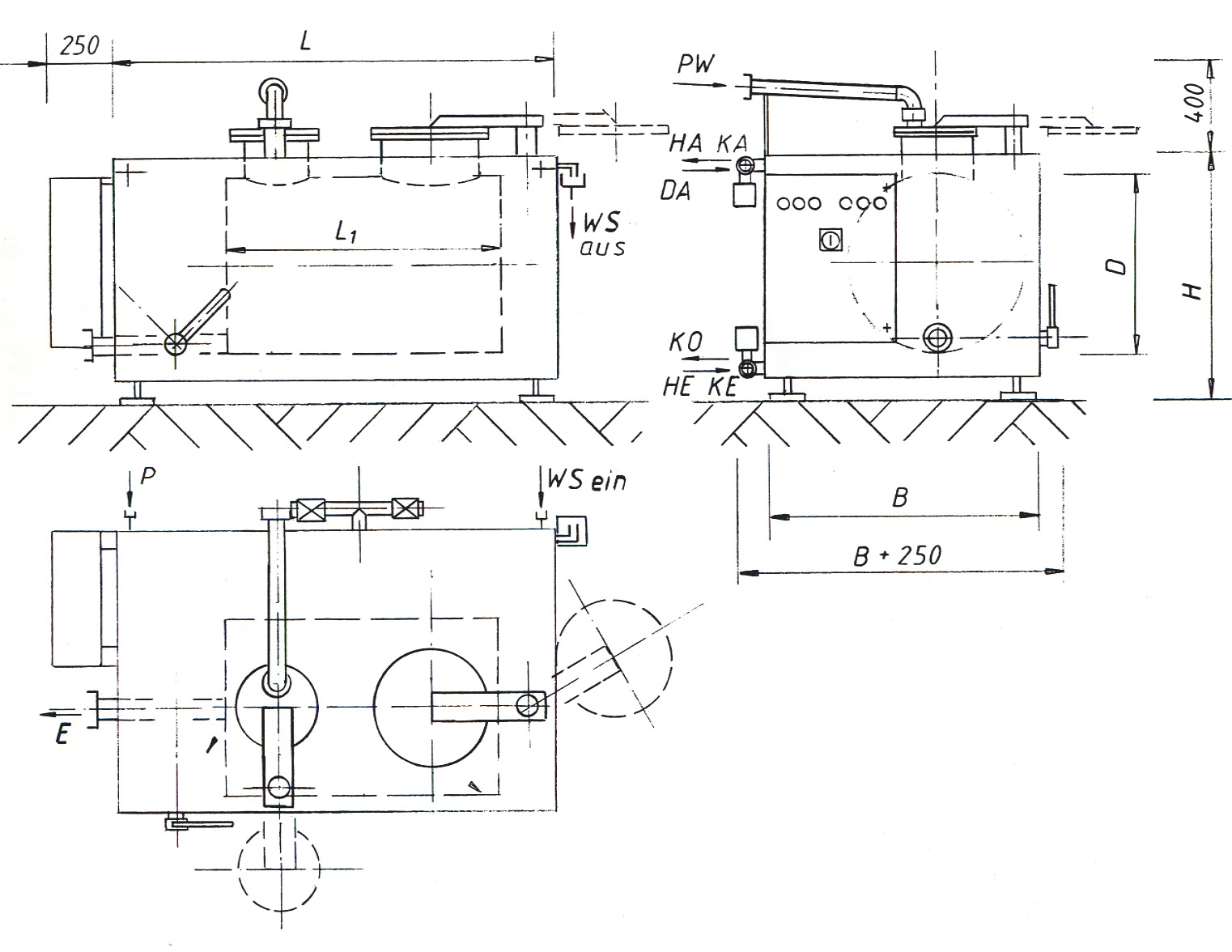

T Y P E P R O G R A M M
| TYP HPA |
CONTAINER VOLUME
|
LOAD.CAPACITY in dm3 min / max |
REQUIRED CONNECT LOAD |
MEASUREMENTS | WATER
LUBRICATION CONNECTION |
STEAM CONDENSATE CONNETION DA/KO |
HOT WATER |
COOLING
WATER CONNECTION ON/OFF KE/KA |
|
DISCHARE
PIPE THREAD PIPE according to . DIN 11851 |
PRODUCTION
WATER CONNECTION Thread pip n. DIN 11851 |
Required
space L x B x H Maße in mm |
Weight kg/netto |
|
| DIAMETER- Ø in mm |
DIAMETER- length/mm |
|||||||||||||
| 250 | 300 | 80 / 250 | 15 kW | 630 | 1000 | 1/2 " | 1/2 " | 1/2 " | 1 " | NW 10 | NW 65 | NW 50 | 1,8x1, 1x1,0 | 1500 |
| 500 | 600 | 200 / 500 | 34 kW | 785 | 1250 | 1/2 " | 1/2 " | 1/2 " | 5/4 " | NW 10 | NW 80 | NW 50 | 2,0x1, 3x1,1 | 1800 |
| 1000 | 1200 | 350 / 1000 | 34 kW | 950 | 1700 | 1/2 " | 1 " | 1 " | 5/4 " | NW 10 | NW 80 | NW 50 | 2,5x1, 5x1,3 | 2200 |
| 1500 | 1800 | 700 / 1500 | 37 kW | 1100 | 1900 | 1/2 " | 1 " | 1 " | 6/4 " | NW 10 | NW 80 | NW 50 | 2,8x1, 7x1,5 | 2700 |
| 2000 | 2400 | 900 / 2000 | 40 kW | 1270 | 1900 | 1/2 " | 1 " | 1 " | 6/4 " | NW 10 | NW 80 | NW 50 | 2,8x1, 9x1,7 | 3200 |
